Introduction:

Runsing Corrugated panels are designed to withstand corrosive environments. They are also moisture resistant and equipped with a surface that won’t rot o rust. Our panels are specifically engineered for use as louvers, enclosures and exterior casings. Runsing panels can withstand all weather climates, high wind loads, which make it the best choice for the corrosive environments of the cooling tower industry.

share:
Product Detail

RUNSING Corrugated Panel IS AVAILABLE

In thicknesses between 1.5 mm and 5.0 mm

In widths up to 1,685 mm

Colours: RAL and customer-specific colours

Other thicknesses, dimensions and colours available on request

Non-fire rated or Class A per ASTM-E84

With various reverse side treatments (smooth, corona, sanded, soft sanded) on request


Specific Product advantages:

Corrosive resistant

Moisture resistant

Runsing panels can withstand all weather climates, high wind loads.

Customize a solution for cooling tower needs


Advantage

2.0mm
NumberItemStandardUnitResult
1Bending StrengthGB/T1449-2005Mpa135
2Tensile StrengthGB/T1447-2005Mpa121
3Compressive StrengthGB/T1448-2005Mpa136
4Shearing StrengthGB/T1450.2-2005Mpa91
5Barcol hardnessGB/T3854-2005-35
6Resin ContentGB/T2577-2005%51
7water absorptionGB/T1462-2005%0.187
8Impact strengthGB/T1451-2005kj/㎡103

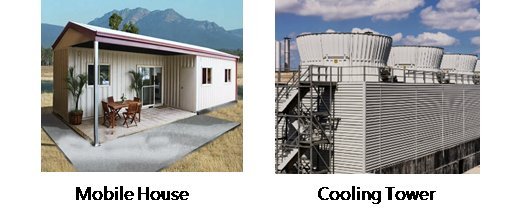

Application Sectors:

Building sector

Cooling tower sector



Product Specifications
